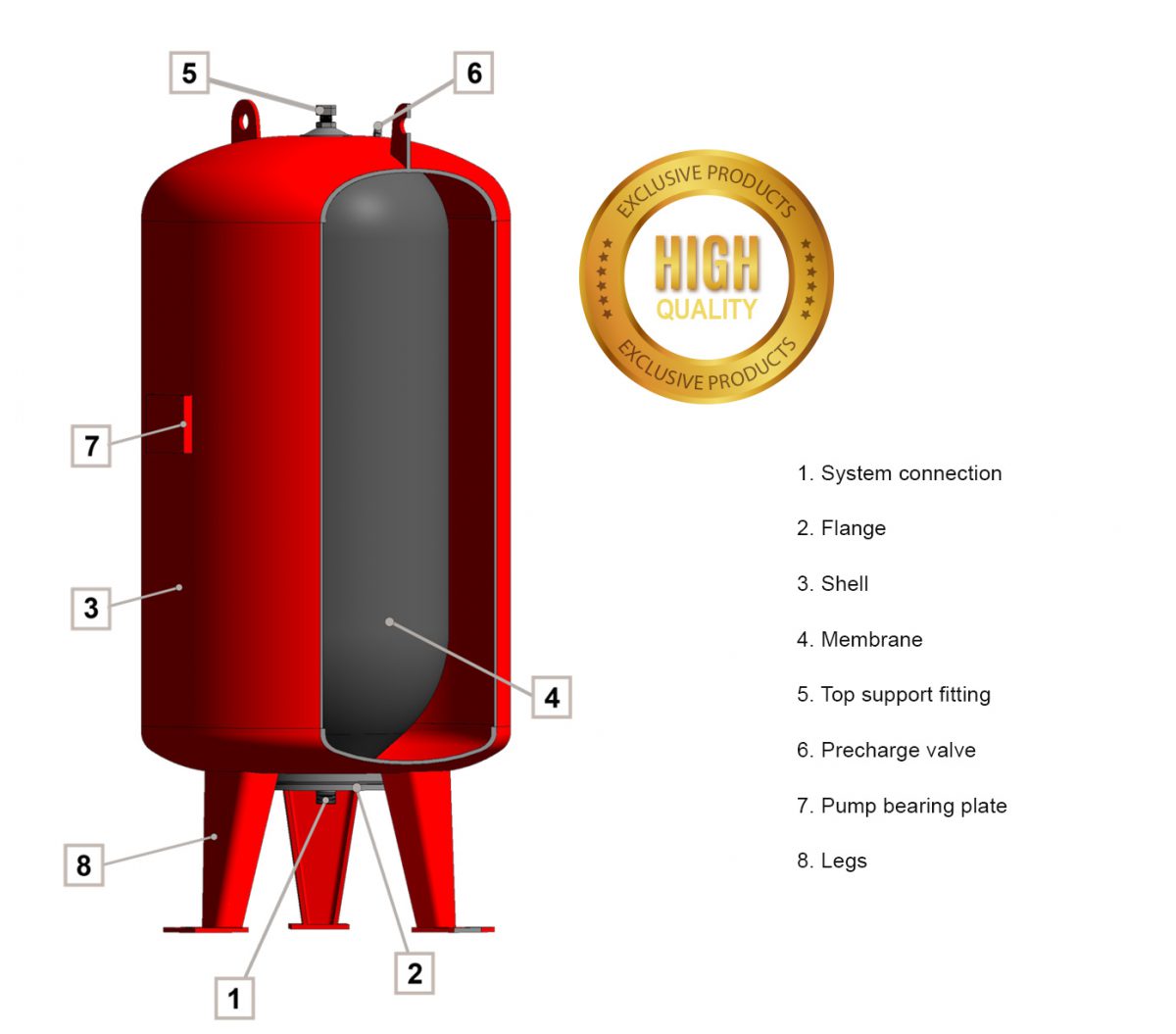

The bladder water tank is a necessary element for a long lasting and regularly working potable water distribution system. Its function is to increase the pressure with which the aqueduct water reachers the end-user. The water tank moderates the changes of pressure gathing the exceeded pressure to optimize the work of the pump. BAOLA water tanks are suited for all types of water systems: industrial, home, and agricultural. BAOLA bladder are balloon-shaped and are directly attached to the flange, avoiding any contact between water and the metal surfaces of the tank.
Furthermore, the introduction of the bladder after tank painting preserver its elasticity, impermeability and non-toxicity. BAOLA not only produces its metal tanks, but also the rubber bladder, thanks to an exclusive know-how, and for most ranges produces the rubber compound too, so maintains under its control the most important component of the pressure tanks.
TECHNICAL DATA
Applications:
Water booster systems
Irrigation systems
Residential and commercial well water
Fire fighting systems
Chiller water systems
Material:
Shell: Carbon steel.
Membrane: EDPM, TPU, IIR, PVC
Test pressure:
1,5 times the max. working pressure
Working Temperature:
Maximum temperature: +90°C
Minimum temperature: -10°C
Color:
Red
