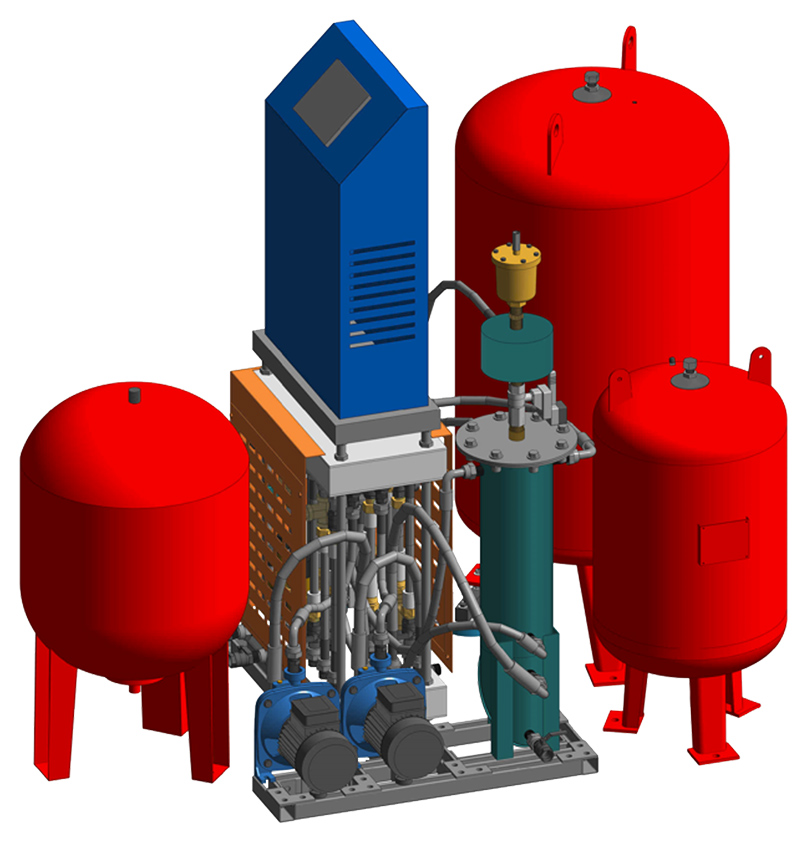

Water pressurization system provide a stable and precision pressure maintenance for water system which water temperature changes or any other reason to make to system pressure increase/decrease. The heating, cooling, production water system, high rise building… are recommended to use this system to protect the equipment from over pressure, reduce the cost for investment and operation.
Important functions:
– Water pressure maintenance: use pump(s), pressure sensor to keep the pressure stable
– Continuous, efficiency, cyclonic vacuum air separator: air is removed in vacuum pressure and all modes of operation.
– Water make up: control the water make up automatically and remove all air in make up water
– Magnetic dirt separator – 01 – 30 micron filter (Optional)
Benefits:
- Maintain the heat transfer capacity of the chiller system at the highest level.
- Saving operating costs for the chiller, no need to periodically clean the filter at FCUs, AHUs, .., reducing operating time and costs.
TECHNICAL DATA
Applications:
Chilled water system/ Heating water
system/ Production water system
Working Temperature:
Maximum temperature: +90°C
Minimum temperature: -10°C
Water make up pressure:
Minimum water pressure is 0.5 bar
Supply voltage:
Main voltage: 1/3 x 220-240D/380-415Y V
Controller:
2 dry contact
1 RS-485 bus, Modbus RTU
Touchscreen Tablet
Accuracy:
Precision pressure maintenance ±0,2 bar
